CNC-1280 Camless Servo Spring Machine — Speed · Precision · Infinite Possibilities
Φ3.0–8.0 mm Wire Diameter · 12-Axis Independent Servo · 120 m/min High Speed
Featuring a 12-15 axis camless, leverless design with independent servo motors for precise forming of complex springs.
Why Choose YF-CNC1280 (Camless) — YF-Yinfeng Spring Machinery
Export-grade performance • Faster delivery • Stronger after-sales • Proven documentation
Price Advantage (Same Wire Range)
Typical saving of USD 2,000+ versus comparable Chinese brands—without compromising on servos, drives, or gauges. Keep budget for tooling, vision, and automation.
3–7-Day Shipment on Hot Models
In-house machining, painting, heat-treatment, plus large warehouse and assembly cells. Semi-finished frames in stock let us prioritize your CNC1280 build and ship fast.
Warranty That Matches Your Model
15 months for direct buyers. Signed agents get 18 months and 10 full tooling sets per machine. One-owner policy: the salesperson you buy from stays responsible for after-sales.
FAT/SAT Assurance + Sample Debugging
Factory Acceptance Test before shipment and Site Acceptance Test on arrival. We can debug 1–3 sample parts, save verified programs/parameters, and hand over documents for CE/ISO audits.
Free In-Factory Training + On-Site Option
Free training at YF-Yinfeng. Buy ≥3 machines and we can dispatch engineers for overseas installation & training (you cover flights/visa). Operation videos from power-on are included.
3–5–7-Day Progress Updates
After deposit, you receive Day-3/5/7 status reports with photos/short videos—frame, wiring, testing, packing—so you always know what’s happening with your CNC1280.
CE / ISO Documentation Ready
Full certification pack available on request for compliance and customs. Ideal for automotive, electronics, appliances and other export-driven sectors.
FOB / CIF / CFR / DDP — Optimized for Cost & Time
We recommend the most efficient route by destination and schedule. Export packing includes anti-rust film and shock labels as standard.
Dedicated 24/7 After-Sales Technical Support
A named support team for your YF-CNC1280 with round-the-clock response (email/WhatsApp). We provide remote diagnostics, programming guidance, process tuning and documentation. For any non-standard/custom parts, our engineers offer end-to-end technical support with escalation to Cendly for fast decisions.
Core Feature Highlights
1. Camless Servo Control: Reduces mechanical wear and speeds up setup
2. 12-Axis Independent Servo: Line-feed, forming, cutting synchronized or stepwise
3. High-Speed Forming: Up to 120 m/min feed rate for industry-leading efficiency
4. Large Program Storage: Over 2,000 programs available on demand
5. Smart Probe Detection: Three probes auto-reject defective springs
6. Wide Wire Range: Φ3.0–8.0 mm, supports various metal wires
Technical Specifications
| Model | YF-CNC-1280 | |
| Diameter of the steel wire(mm) | Φ3.0-8.0mm | |
| Max Wire Feed instruction value | 10000.00mm | |
| Min Wire Feed instruction value | 0.01mm | |
| Max Wire Feed speed | 0-100 m/min | |
| Max Wire Feed length | Infinite length | |
| Input voltage | 380V±10%V50HZ (Customized) | |
| Program data storage | More than 2000 pcs | |
| Total power (kw) | 58.5 | |
| Numberof axes | 12 axis | |
| Quantity of the wire feed wheels | 4pairs | |
| Servo motor | Wire feeding | 15kw |
| WIre rotate | 5.5kw | |
| mandrel rotate | 1.5kw | |
| Spinner | 1.5kw | |
| Slide | 4.5kw*8 | |
| Main Machine(L*W*H)(mm) | 2500*3100*2500 | |
| Net Weight of Machine (kg) | 7500 | |
Industry Solutions
🚗Automotive Suspension & Shock Absorber Springs
✈️ Aerospace Specialty Springs
💡 Electronic Component Micro Springs
🛋️ Furniture Hardware Formed Parts
🏥 Medical Device Elastic Components
CNC1280 — Performance & Control Highlights
Taiwan-made control & servos • Precision tracking & auto-stop • On-screen live tuning • Auto lubrication

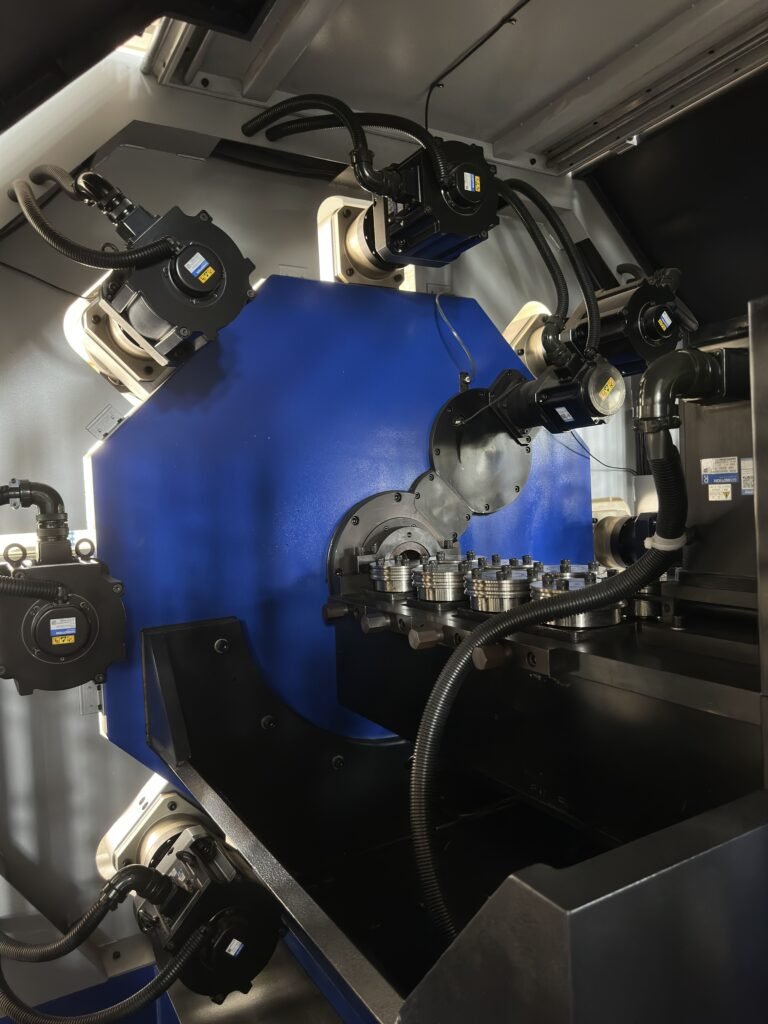

Taiwan Control System & Servo Motors
Industrial-grade reliability with bilingual HMI (English/Chinese). Fast program edits, accurate positioning, and smooth multi-axis synchronization.
12-Axis Camless Architecture
Each station is driven by a dedicated servo—axes can run synchronously or separately for complex 3D forms and fast changeovers.
Precision Tracking & Auto-Stop
Inline defect tracking shuts down automatically on out-of-spec conditions—protects quality and reduces scrap at speed.
Live On-Screen Parameter Tuning
Modify outside diameter, angles and key parameters on the fly according to real-time status on the screen—no stop-start cycles.
Automatic Lubrication System
Mechanical auto-lubrication maintains smooth motion for long production runs, minimizing wear and unplanned downtime.
CNC1280 — Specs Snapshot & Site Readiness
Key Specs
Footprint & Utilities
Samples, Training & Compliance
Sample & Training Assurance
- 1–3 sample parts debugged before shipment; verified programs/parameters saved on controller.
- Operation & training video from power-on for new operators.
- Free in-factory training; buy ≥3 machines and we can dispatch engineers overseas (you cover flights/visa).
- 3–5–7 day progress updates after deposit (photos/short videos).
Compliance & Downloads
- CE / ISO documentation pack available on request.
- FAT/SAT checklists for acceptance and audit trails.
- Warranty: 15 months (direct). Agents: 18 months + 10 full tooling sets per machine.
- Logistics: FOB / CIF / CFR / DDP with export packing (anti-rust film & shock labels).

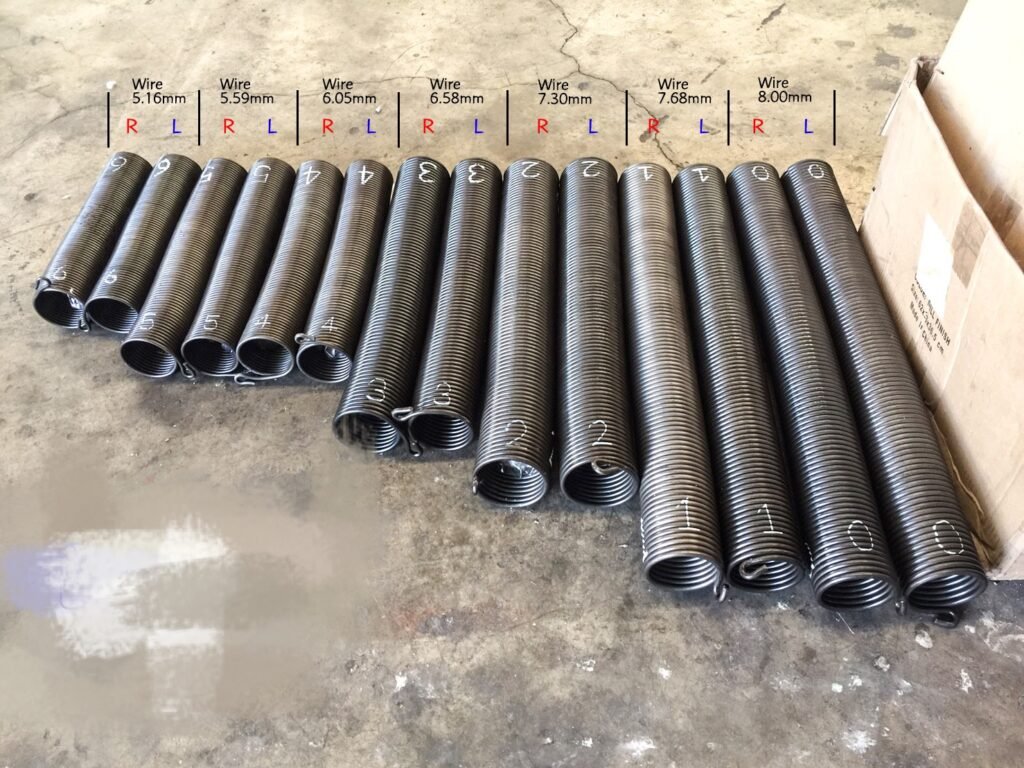

CASE SHOW

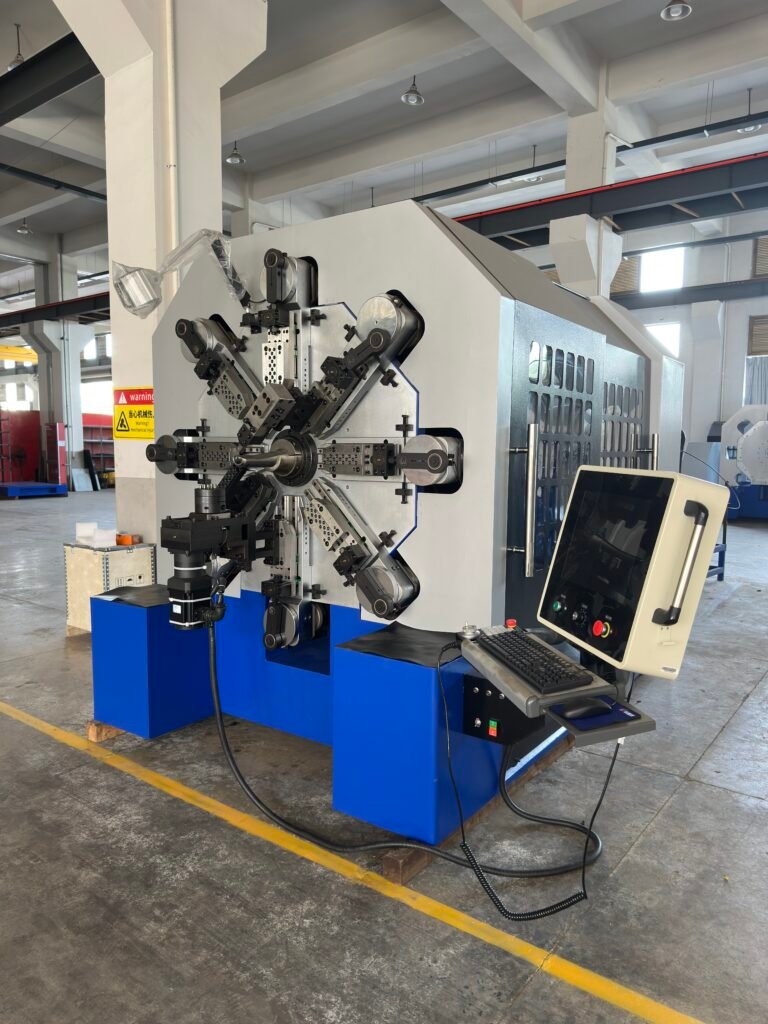

CNC1280 Wire Forming Machine
