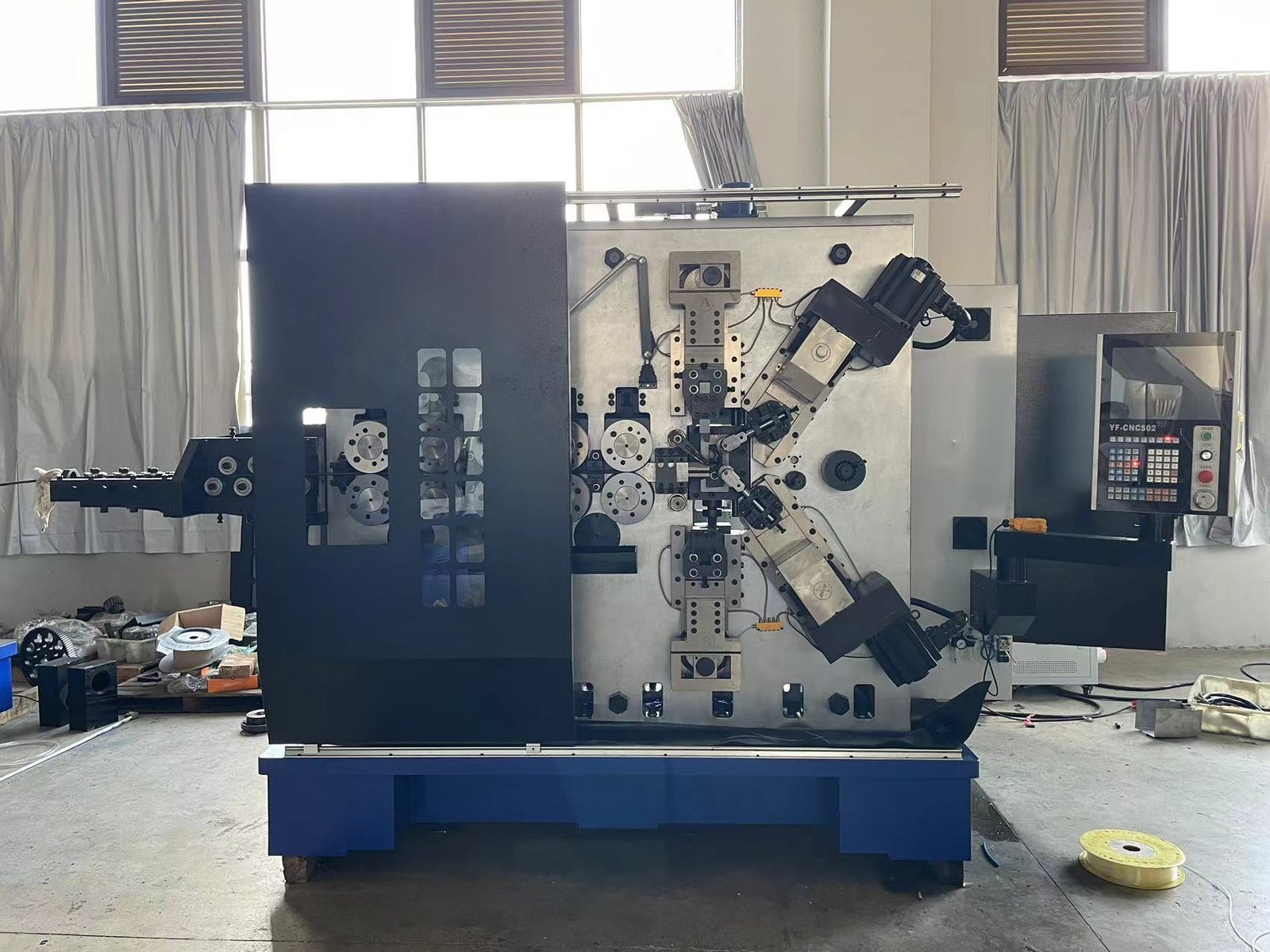

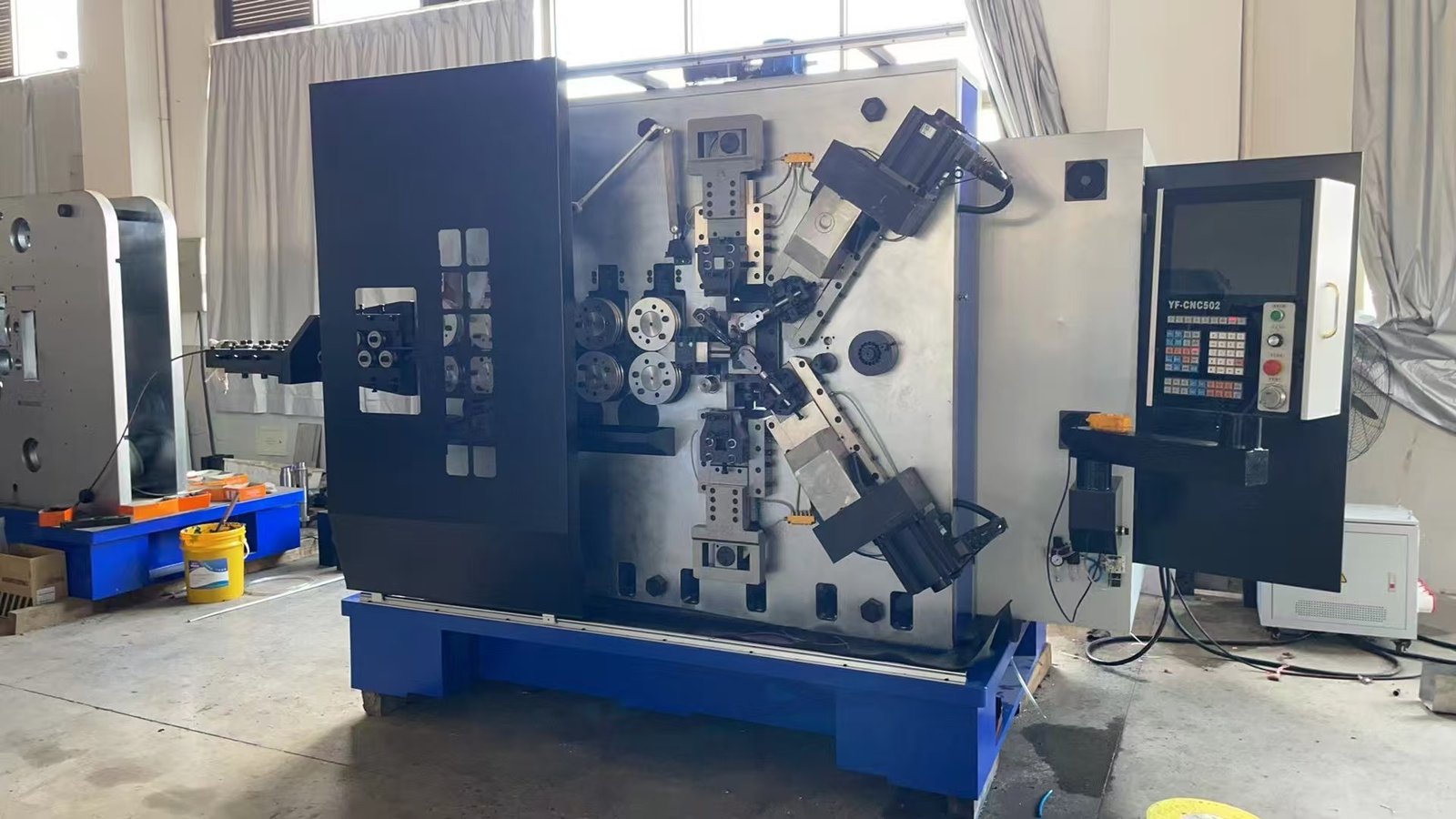

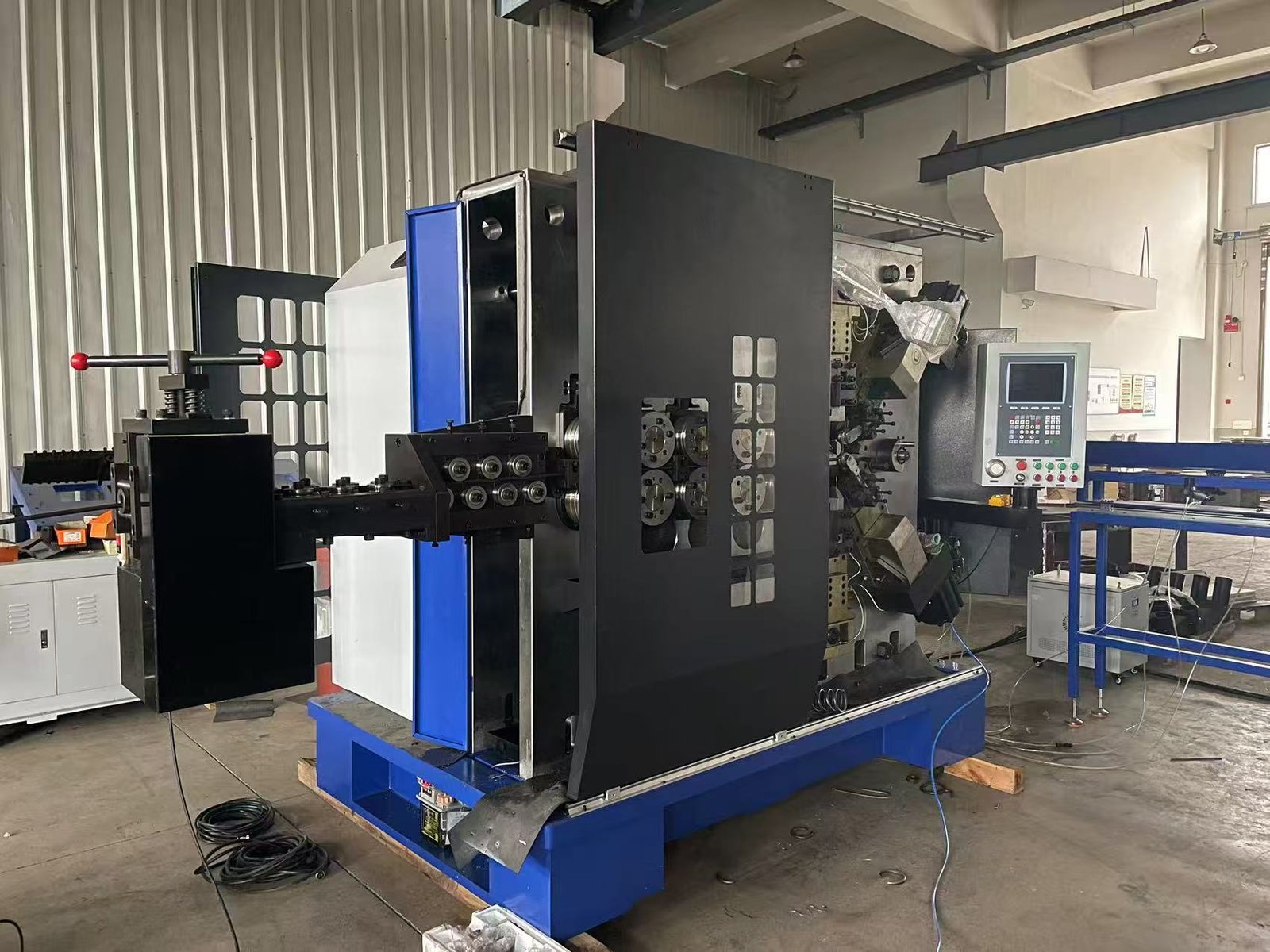

CNC86120 CNC Compression Spring Machine for 4.0–12.0mm Wire
Built for larger compression spring production with 6-axis CNC control, flexible pitch adjustment, independent OD control, and fast program recall for efficient changeovers.
- Wire Range: 4.0–12.0mm
- 6-Axis CNC Control
- Max Spring OD: 140mm
- Support OEM & ODM
Is CNC86120 the Right Machine for Your Spring Production?
If your factory is producing larger compression springs and needs more efficient setup, easier parameter adjustment, and repeatable output, CNC86120 is a strong-fit model.Controlled with six axis: wire feed axis ,cam axis ,up-cut blade axis ,down-cut blade axis and space axis
Best fit for buyers who need:
Engineered for Heavy-Duty Springs
Built for compression spring production in the 4.0–12.0mm wire range, this machine delivers the strength, rigidity, and forming stability required for larger spring applications.
Reliable for Demanding Industries
Well suited for automotive, industrial, and other high-load spring applications where production consistency, dimensional stability, and long-term reliability matter.
Greater Flexibility in Spring Forming
Flexible pitch and OD adjustment allows manufacturers to handle a broader range of spring specifications with improved control and greater production versatility.
Faster Changeover Efficiency
With faster setup and reduced changeover time compared with traditional mechanical spring machines, it helps manufacturers improve uptime and reduce labor-intensive adjustment.

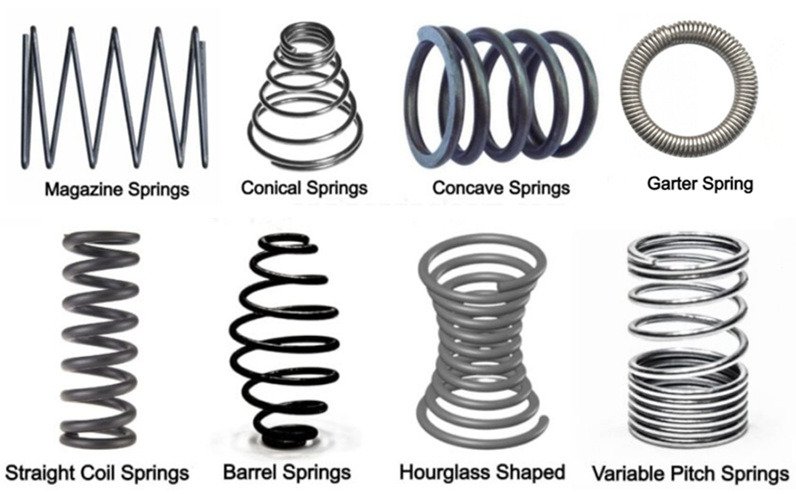

Designed for Multiple Compression Spring Applications
CNC86120 is suitable for producing a wide range of larger-wire compression spring products, including:
- Standard compression springs
- Oil seal springs
- Conical springs
- Automotive springs
- Wave springs
If you have a drawing or a finished spring sample, our team can help confirm whether CNC86120 is the right model for your product before quotation.
Why Buyers Choose CNC86120 ？
Compared with traditional mechanical spring machines, CNC86120 gives operators more flexibility and easier parameter control. The machine uses a computerized servo system to display axis positions, wire feeding data, production speed, and output quantity directly on screen. Program settings can be stored, recalled, and adjusted through the control system, making production changes more efficient.
Save and recall production programs for repeat orders.
Easier outer diameter adjustment through program settings.
Convenient pitch adjustment for different spring designs.
Avoid the inconvenience of frequent cam plate replacement.
More Control, Easier Adjustment, Better Repeatability
See CNC86120 in Real Machine Video
CNC86120 Technical Features and Machine Specifications
The CNC86120 is designed for 4.0–12.0mm compression spring production. This section helps industrial buyers understand both the machine capability and the technical data needed for model evaluation, workshop planning, and quotation confirmation.
Why CNC86120 Works in Real Production
Instead of only listing numbers, this section explains what the CNC86120 configuration means in practical production. It is especially suitable for buyers producing larger compression springs and looking for stronger feeding capability, better OD control, and more stable heavy-wire spring manufacturing.
6-Axis CNC Control
Coordinated multi-axis movement supports more stable spring forming and better consistency in larger wire production.
30.0kW Wire Feed Power
Strong wire feeding servo power makes the machine more suitable for heavy-duty compression spring manufacturing.
Dual OD Servo Motors
Independent OD control helps operators adjust spring outer diameter more conveniently during setup and production.
Dual Cutter Servo Motors
High-power cutting support improves cutting stability for large wire spring processing in demanding production work.
CNC86120 Technical Specifications
Clear machine specifications help buyers confirm production range, power configuration, installation requirements, and spring compatibility before sending drawings or requesting a quotation.
Factory Support for Real Production Needs
We support buyers not only with machine supply, but also with model recommendation, drawing review, sample feasibility checking, machine testing, and after-sales support. For larger spring projects, accurate machine matching is more important than low initial price.
Why Buyers Prefer Yinfeng Cendly Instead of a Trading Company
Serious buyers usually need more than a catalog quote. They need factory-direct communication, clearer technical judgment, faster production updates, stronger after-sales responsibility, and a supplier who can evaluate the real spring drawing before recommending the machine.
What Makes Yinfeng Cendly More Reliable
For industrial spring machine projects, a good supplier should help buyers reduce procurement risk, improve machine matching accuracy, and provide stable support from quotation to shipment to training.
Factory Direct Communication
Work directly with the manufacturer instead of depending only on a middleman. This helps buyers get clearer answers on machine structure, production suitability, and delivery progress.
Competitive Factory Pricing
For the same wire diameter range, Yinfeng machines are positioned to be more cost-effective, often over US$2,000 lower than many comparable suppliers in China.
Stock and Fast Delivery Support
Most popular models are available from stock or semi-finished inventory. With machining, painting, heat-treatment, warehouse, and assembly capacity in-house, delivery can move faster.
Drawing-Based Recommendation
We recommend the machine according to your actual drawing, sample, wire diameter, and forming requirement, not just by guesswork or price comparison.
Sample Testing and Training Support
Each machine can support 1–3 sample runs, video recording, parameter saving, and training videos from power-up to operation, which is especially helpful for new users.
Stronger After-Sales Through Cendly
Contacting Cendly directly means higher service authority, faster response, 15-month after-sales support, and upgraded 18-month support for agents with full tooling support.
Transparent Production Updates
After deposit, machine progress can be updated at 3-day, 5-day, and 7-day intervals, helping buyers track production more clearly and reduce uncertainty.
Flexible OEM / ODM and Shipping Terms
Yinfeng supports OEM / ODM, custom metal wire forming solutions, and different shipping terms such as FOB and CIF to help buyers balance budget, lead time, and logistics cost.
Certificates and Qualification Support
Trust is especially important for importers, distributors, and industrial factories. Clear qualification documents and certification support help buyers move faster during evaluation, approval, and procurement.
More Than a Quote — A Full Project Workflow
From drawing review and sample discussion to progress updates, shipment planning, training videos, and after-sales support, the goal is to make your machine purchase more predictable and easier to execute.
Best for Serious Buyers
This workflow is especially suitable for buyers who already have drawings, sample photos, target output, or a clear production plan and want a more reliable supplier recommendation.
Send Your Drawing to Cendly
If you already know your wire diameter, spring OD, free length, material, or target output, send those details together with your drawing or spring photo. This helps us recommend the right machine model faster and provide a more accurate quotation.
CNC86120 Compression Spring Machine FAQ
These FAQs help buyers understand the CNC86120 CNC compression spring machine more clearly before sending a drawing or requesting a quotation. The answers below cover wire range, spring types, outer diameter, axis configuration, power supply, and whether this model is suitable for heavy-duty compression spring production.
1. What wire range can CNC86120 handle?
CNC86120 is designed for 4.0–12.0mm wire diameter spring production. This makes it suitable for buyers looking for a heavy-duty CNC compression spring machine for larger wire applications rather than a light-wire spring coiling machine.
2. What types of springs can this machine make?
CNC86120 is suitable for producing compression springs, oil seal springs, conical springs, wave springs, and automotive springs. For industrial buyers, this makes it a strong option for larger-wire spring manufacturing and automotive or industrial spring applications.
3. What is the maximum spring outer diameter?
The maximum spring outer diameter is 140mm. If your spring has a complex structure, it is still recommended to send the drawing or sample photo before ordering so the machine model can be confirmed more accurately.
4. How many axes does the machine have?
CNC86120 uses a 6-axis CNC control system. This configuration helps coordinate forming actions more effectively and supports stable production for large-wire compression spring manufacturing.
5. What power supply is required?

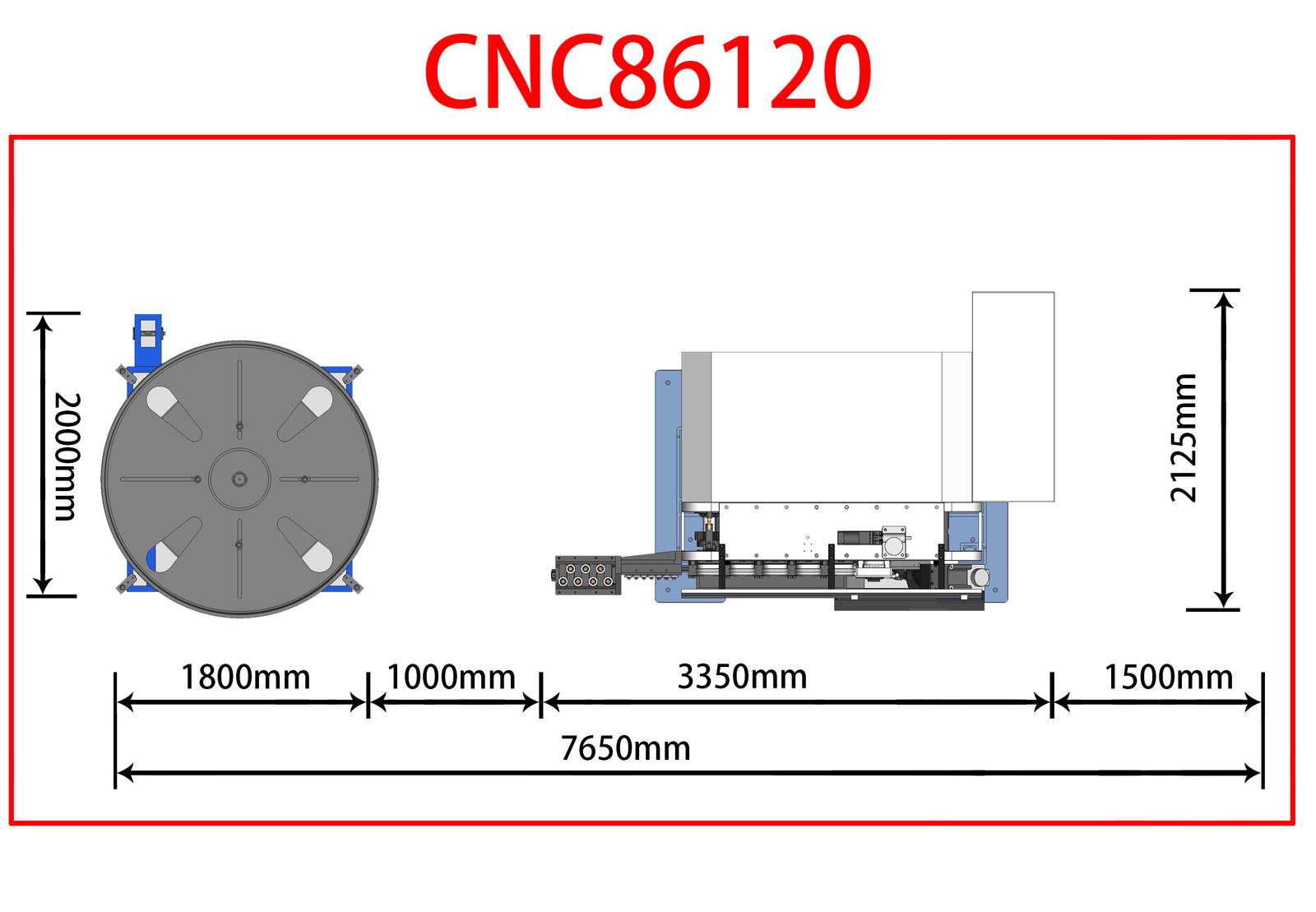

The standard input power is 380V ±10%, 50Hz. Buyers should also confirm workshop layout, installation space, and machine handling conditions before purchase, especially for heavy-duty spring machine installation.
6. Can I send a drawing before ordering?
Yes. Sending your spring drawing, sample photo, wire diameter, spring outer diameter, free length, material, and target output helps confirm the right machine model and quotation faster. This is the recommended workflow for serious buyers of CNC spring machines.
7. Is this machine suitable for heavy-duty spring production?
Yes. Based on its 4.0–12.0mm wire range, 6-axis CNC structure, and positioning for larger-wire applications, CNC86120 is suitable for heavy-duty compression spring production, especially in industrial and automotive spring manufacturing projects.
