CNC8620 6-Axis Spring Coiling Machine
The YF-CNC-8620 6-Axis Spring Coiling Machine is engineered for precise spring production, designed for wire diameters of Φ0.4-2.0mm. Equipped with advanced SANYO/Panasonic servo motors, it offers fast response speeds and high control accuracy for efficient production.
6-Axis Control System
Achieve precise control over wire feed, cam, up-cut blade, down-cut blade, and space axis, ensuring high-quality spring forming.
High-Efficiency Servo Motors
Equipped with SANYO/Panasonic servo motors offering fast response, high precision control, large output torque, and strong anti-interference capabilities.
Flexible Production Capability
Supports both left- and right-handed winding, adaptable to various spring shapes to meet diverse customer needs.
User-Friendly Interface
Bilingual interface (Chinese & English Or customized luggage) makes the operation easy and intuitive, enabling quick user adaptation
Technical Specifications
Discover the detailed technical specifications of the YF-CNC-8620 Spring Coiling Machine to ensure it meets all your production requirements.
| Model | CNC8620 | |
| Diameter of the wire(mm) | Φ0.4-2.0mm | |
| Number of axes | 6 | |
| Max. OD of spring(mm) | 30mm | |
| Length of the feeding wire | No limitation | |
| Wire feeding speed(m/min) | 104 | |
| Quantity of the wire feed wheels | 2 pairs | |
| Rotation | Left or right | |
| Forming Way | Double points | |
| Servo Motor(kw) | Outside diameter servo power | 0.75kw*2 |
| Cutter servo power | 1.0kw*2 | |
| Pitch axis servo power | 0.4kw | |
| Wire feeding | 2.7kw | |
| Input voltage | 380V±10%V50HZ (Customized) | |
| Main Machine(L*W*H)(mm) | 1300*800*1800 | |
| Net Weight of Machine (kg) | 600 | |

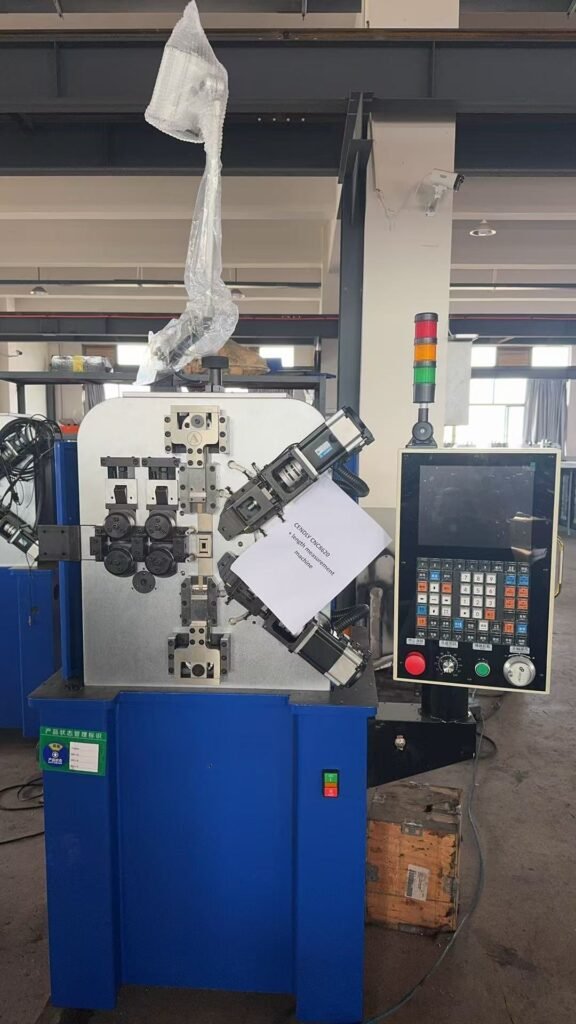

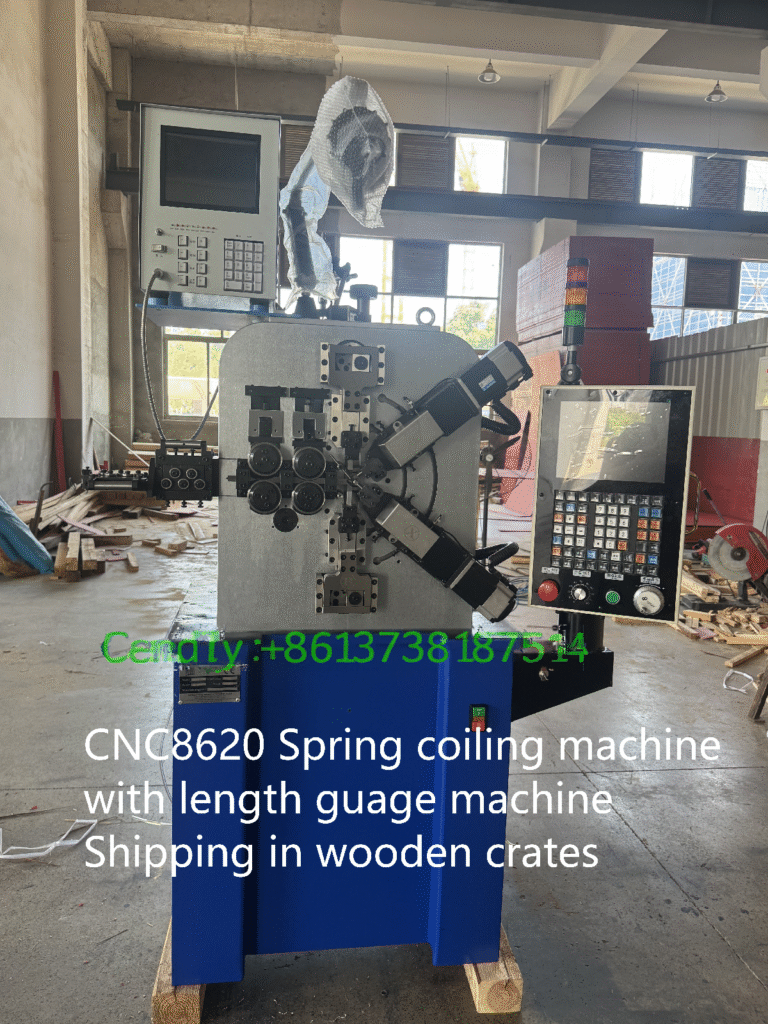

CNC8620 Machine in Action
After-Sales Support & Training
Lifetime Warranty: Our products come with a lifetime warranty from the Bill of Lading (B/L) date. Any parts damaged within 12 months from the B/L date will be replaced at no cost to the buyer, with the exception of the shipping charges, which will be borne by the buyer.
24/7 Customer Support: The seller provides lifelong support for our buyers. We are available through Skype, WhatsApp, Email, and Telephone, and offer 24-hour online assistance to address any queries or concerns.
On-Site Mounting & Training: Should the buyer require on-site installation or training, all associated costs will be covered by the buyer, including visa, round-trip flights, accommodation, and a labor charge of $150 USD per day for one engineer. Once all expenses are settled, we will dispatch our engineer to the buyer’s site.
Training at Our Facility: If the buyer sends 1-2 personnel to our company for training, the training fee will be covered by the seller. However, the buyer is responsible for flight tickets, and accommodation expenses.
Why Choose YF?
Reliable & Fast Delivery: We guarantee fast delivery with many of our models in stock and available for delivery in as little as 3-7 days.
Cost-Effective Solutions: YF offers the most competitive prices without compromising on quality, helping you save on costs while ensuring top-notch performance.
Personalized Support: Our team offers personalized solutions and quick responses to ensure you receive the best machine and service for your needs.
For the best price and fastest service, contact Cendly now! Get the support you need and enjoy seamless after-sales service with YF Spring Machinery.
