YF-CNC1026/1126 Camless Spring Machine
- 10-14 axis Diameter of the steel wire(mm)：0.2-2.6mm
- Best for: tension/torsion/battery springs + wire forms requiring flexibility
- In stock with 3–7 days delivery (promotion models)
- Camless platform: faster setup and better versatility for mixed orders
| Model | YF-CNC-1026 | YF-CNC-1126 | |
| Diameter of the steel wire(mm) | 0.2-2.6mm | 0.2-2.6mm | |
| Max Wire Feed instruction value | 10000.00mm | 10000.00mm | |
| Min Wire Feed instruction value | 0.01mm | 0.01mm | |
| Max Wire Feed speed | 100 m/min | 100 m/min | |
| Max Wire Feed length | Infinite length | Infinite length | |
| Input voltage | 380V±10%V50HZ (Customized) | 380V±10%V50HZ (Customized) | |
| Program data storage | More than 2000 pcs | More than 2000 pcs | |
| Total power (kw) | 9.45 | 10.2 | |
| Number of axes | 10 axis | 11 axis | |
| Quantity of the wire feed wheels | 2 pairs | 2 pairs | |
| Servo motor | Wire feeding | 2.7kw | 2.7kw |
| mandrel rotate | 0.75kw | 0.75kw | |
| Spinner | Optional | 0.75kw | |
| Slide | 0.75kw*8 | 0.75kw*8 | |
| Main Machine(L*W*H)(mm) | 1600*1000*1800 | 1600*1000*1800 | |
| Net Weight of Machine (kg) | 1200 | 1250 | |
1.Using Taiwan imported computer control system and servo motor.
2.The computer is in Chinses/English interface,easy to operation,accurate positioning,the computer can control 10 -12 servo motors,all can be synchronized or run separately.
3.The product has a precision detection tracking device,it can automatically shut down if find a substandard product.
4.The parameters such as outside diameter and angle can be modified at any moment according to the working status displayed on the screen.
5.The mechanical automatic lubricating oil supply design,to ensure the equipment movement for a long time.
After-Sales & Training
1. Our product is life-time warranty from B/L Date. Parts damaged during 12 months from B/L date will be replaced on the cost of the SELLER. But the carriage fee is borne by the buyer.
2. Seller provides the service for the buyer forever. Buyer can contact us by Skype, WhatsApp, Email and Telephone at any time. We provide 24h on-line service.
3. Buyer need mounting service and training abroad, all costs will be charged: visa, round flight tickets,boarding & lodging, labor charge of one engineer 150USD PER DAY.After receiving all the cost, seller willsend engineer to Buyer’s site.
4. Buyer need send 1-2 persons to Seller’s company for training. Training fee was borne by Seller. The flight ticket and the boarding & lodging expense should be borne by Buyer.
Tension Spring
Torsion Spring
Battery Compression Spring Redux Spring Double Wire Spring
Clothespin spring Zigzag Spring
Constant Spring
Spring Machine Selector: CNC8322 vs CNC1026 vs CNC8525 vs CNC1225
Compare wire range, platform (cam/camless/wire-turning), changeover speed, and budget fit. If you share a drawing/photo + wire diameter + material grade, we’ll recommend the best-fit configuration and a tooling plan within 2 hours.
CNC8322 Cam Spring Machine
- Wire range: 0.2–2.5 mm (iron wire: 0.5–3.5 mm)
- Axes / platform: 3-axis cam-driven (project options up to 5-axis)
- Best for: stable repeat products, single-style high volume, skilled setters
- Excellent price-to-performance for standard spring production.
- Proven, market-validated structure with stable daily operation.
- Strong choice when product mix is stable and output is large.
- Changeover speed is limited by cam setup; relies on technician experience.
- Not suitable for high-difficulty double torsion springs or advanced wire forms requiring wire rotation.

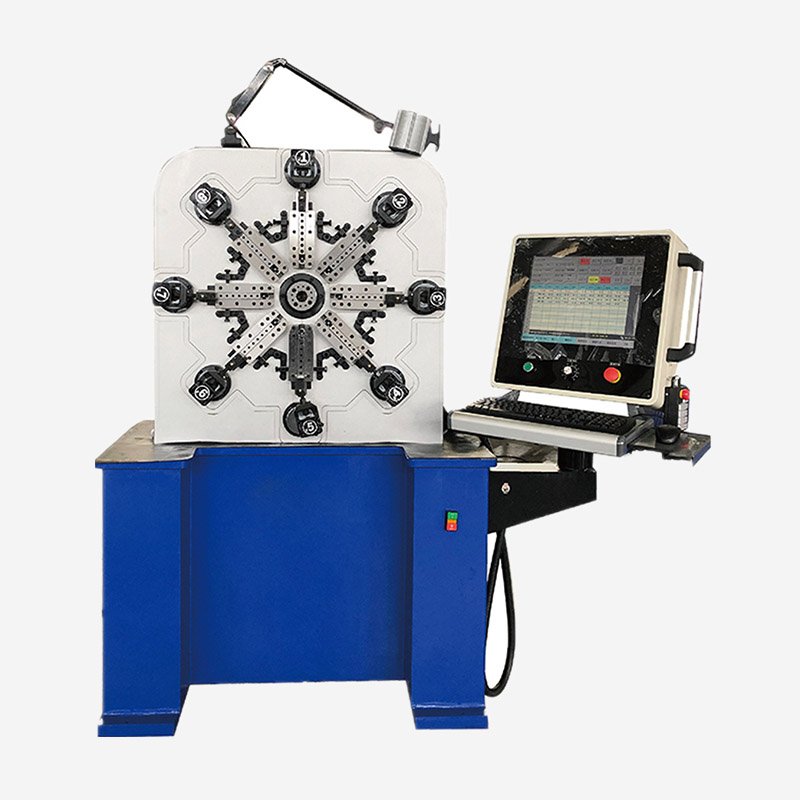

CNC1026 Camless Spring Making Machine
- Wire range: 0.2–2.6 mm
- Axes / platform: 10-axis camless (expandable with options)
- Best for: frequent changeovers, mixed springs, higher productivity upgrades
- Camless platform can cut setup time by ~50% versus basic cam machines (field feedback).
- Faster model switching improves capacity for multi-SKU production.
- Common “upgrade model” for factories shifting to flexible manufacturing.
- For the highest-difficulty torsion springs that require full 360° wire rotation, a dedicated solution may be needed.
- ROI depends on matching options to your spring geometry.

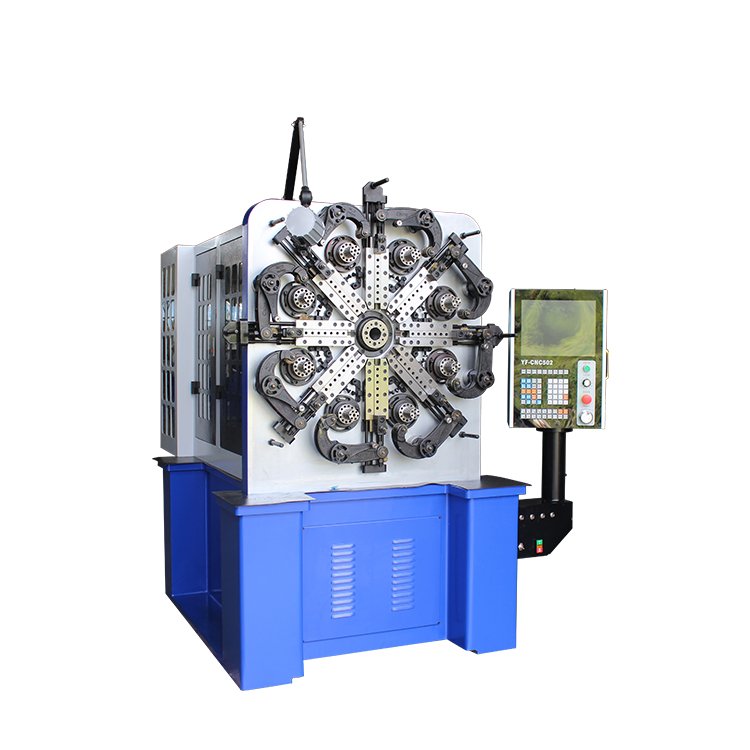

CNC8525 Wire-Turning Spring Machine
- Wire range: 0.3–2.5 mm (iron wire: 0.5–3.5 mm)
- Axes / functions: 5-axis with wire turning + Spinner (standard)
- Best for: difficult torsion springs and wire forms requiring wire turning
- Wire-turning expands capability beyond basic 3-axis cam machines.
- Supports higher-difficulty double torsion springs and complex wire forms.
- Good fit when your product needs wire rotation during feeding.
- Cam platform still requires stronger setup skills than camless; training is typically longer.
- If you switch products very often, camless may be faster for changeovers.

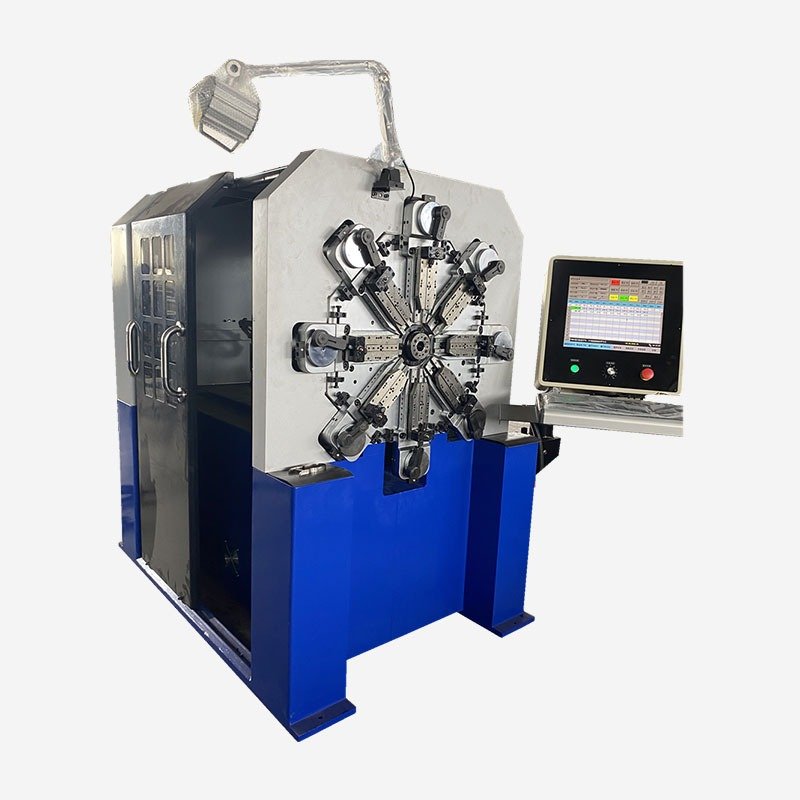

CNC1225 12-Axis Camless Spring Machine
- Wire range: 0.3–2.5 mm
- Axes / functions: 12-axis camless + Spinner (standard)
- Best for: many spring types, frequent changeovers, new product development
- Camless design: typically ~50% faster debugging/changeover versus cam machines (field feedback).
- Beginner-friendly: shorter training time and easier setup workflow.
- Program recall: save spring programs in the system and call them up for repeat jobs.
- Tooling setup is more straightforward—place tools on the correct arms and start production faster.
- Higher investment than the other models in this group.
- Best ROI comes from matching configuration to your product mix.
30-second selection rule
- Lowest budget + stable repeat products: CNC8322 (cam-driven)
- Frequent model changes + mixed products: CNC1026 (camless)
- Need wire turning for difficult torsion springs: CNC8525
- Most versatile + fastest changeover in this group: CNC1225 (12-axis camless)
