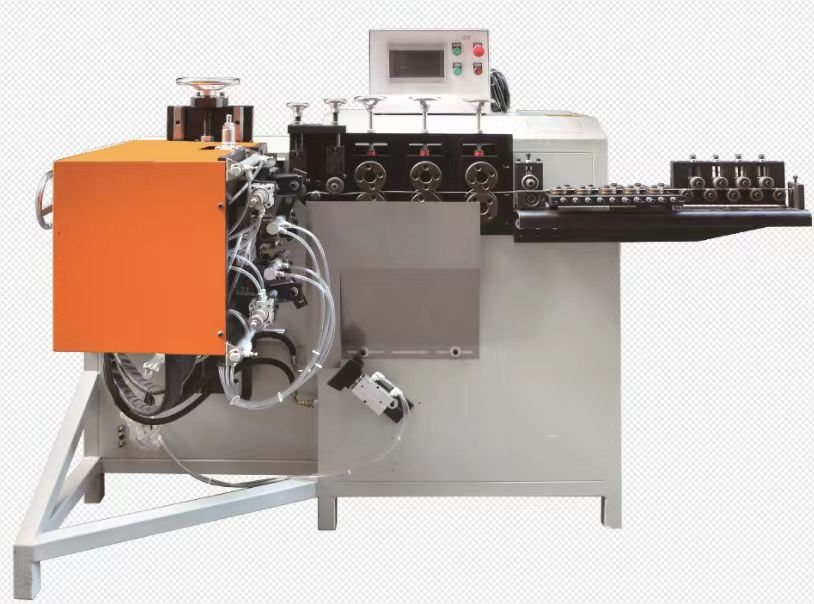

YF2-6 Fully Servo-Controlled Circle Welding Machine
2-6 Full servo beater butt welding machine parameters 50~600 |
Servo wire feeding motor: 2.6KW/3000rpm (domestic) |
Servo cut-off motor: 1.0KW (domestic) |
Wire feeding speed: 35 meters/min |
Production speed: 10-20 pcs/min (80 diameters for example, the larger the diameter the slower the speed) |
Loop diameter: 50mm-600mm (3mm wire diameter or more can play more than 400 large circle) 2-2.5mm circle diameter range 50-300 3-4mm circle diameter range 50-400 4-5mm circle diameter range 50-500 6mm circle diameter range 60-600 |
Looped wire diameter: 2mm-6mm (mild steel), perimeter tolerance: earth 0.2 |
Ringing diameter tolerance: 0.5mm |
Flatness: less than 0.5mm |
Input voltage: 380V |
Welding power: 50KVA |
Load sustainment: 50% |
Compressed air pressure: 0.6MPa |
Cooling water flow: 50L/min |
Equipment external size (L*W*H) (mm): 2400*1450*1500 |
Total weight of equipment: 800KG |

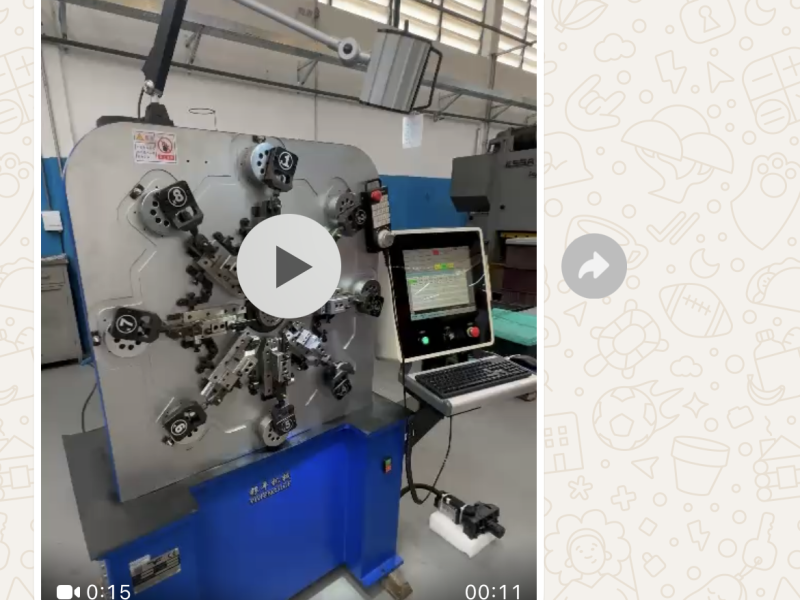

CASE SHOW
More Solutions for Your Success

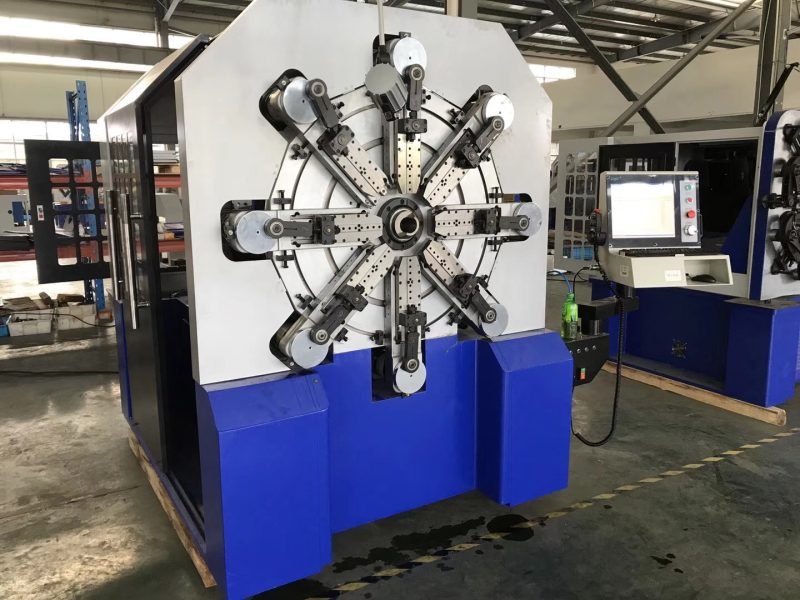

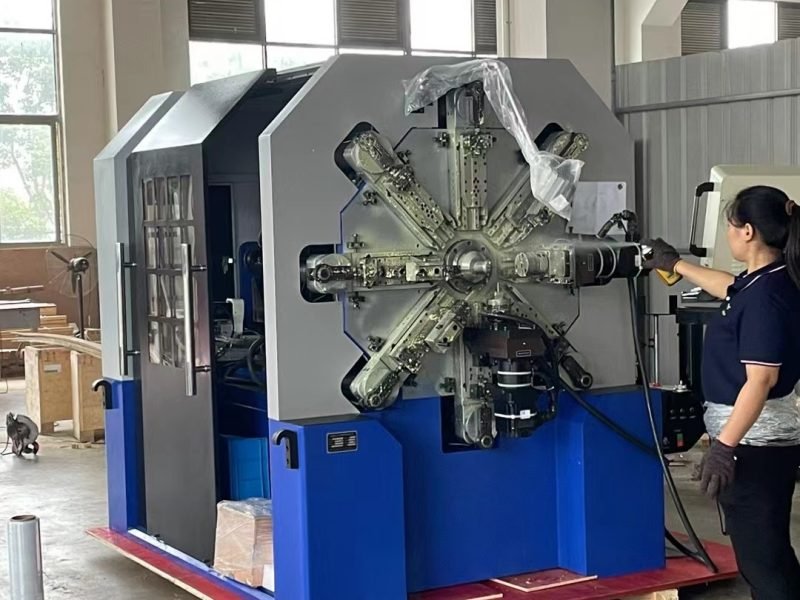

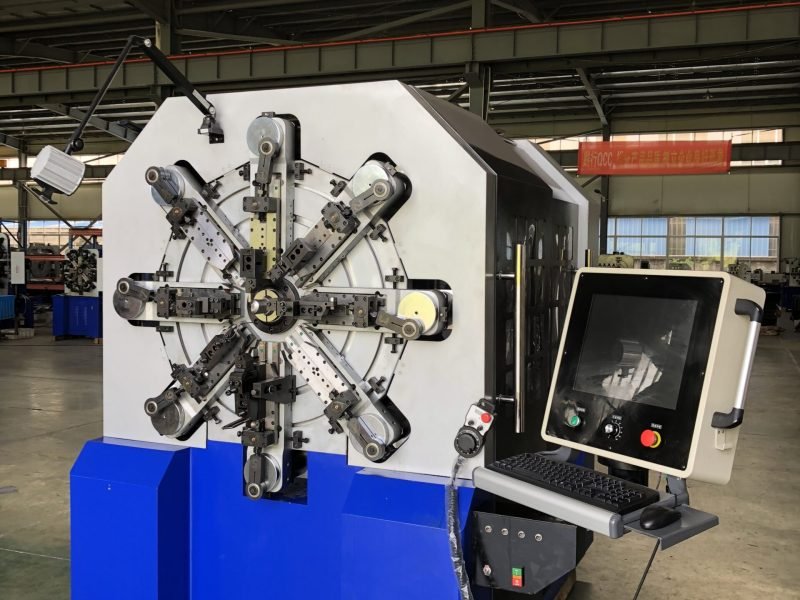

CNC Spring Coiling Machine
